Qun Kun® layer cage - Chicken cage manufacturer since 1999 and Chicken Farming since 2008

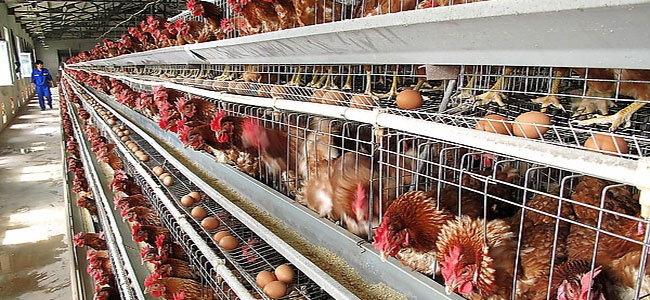

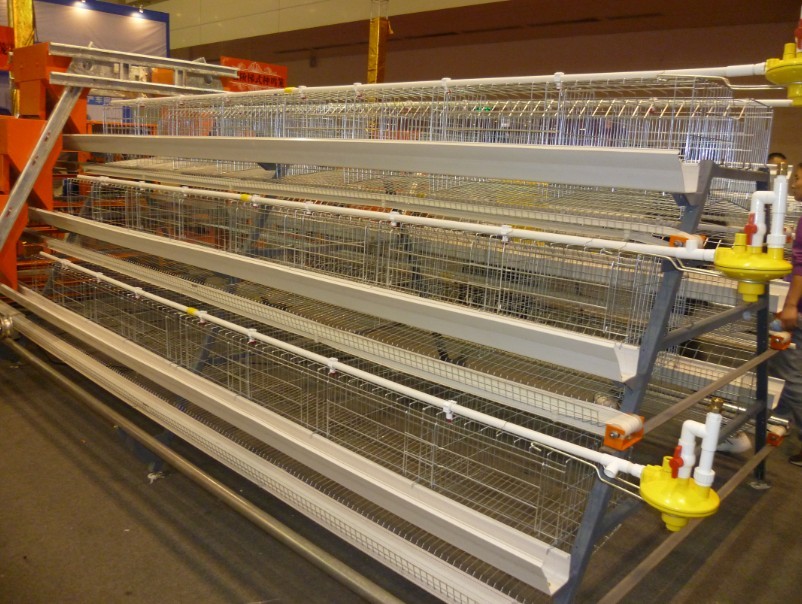

What is layer cage?
Layer cage is also known as battery cage or poultry cage, which is used for rearing egg-laying chickens after growing up to 12 weeks or 16 weeks . The biggest advantage of layer cages is increasing egg production to 98%, and its very easy to handle chicken waste and reduce disease transmission.

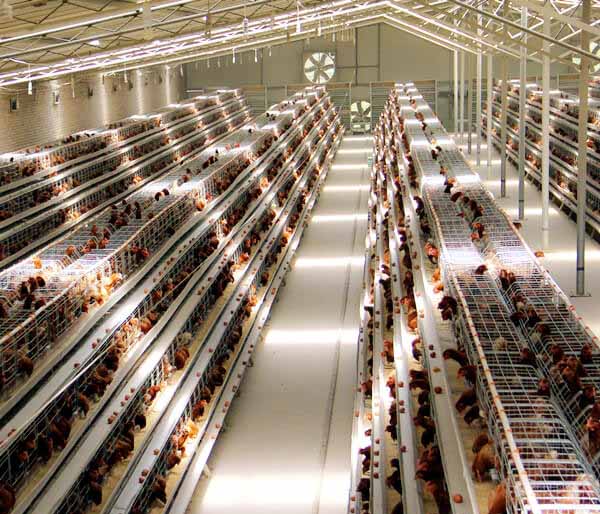

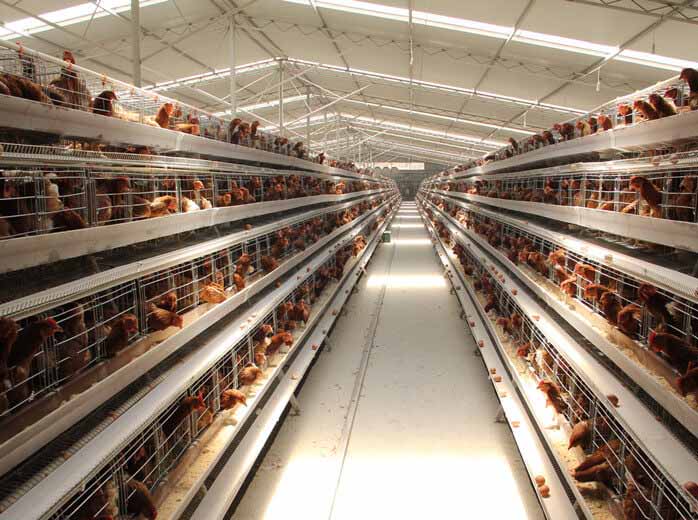

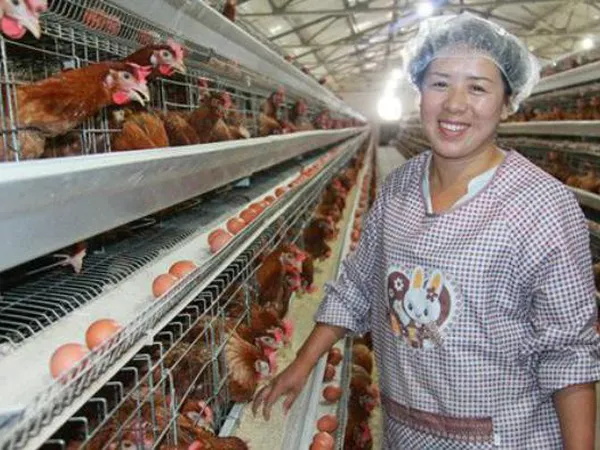

Our own Chicken farm house (60,000+birds) using our own layer cages.
How to choose layer cage for your poultry farm?
There are many size and type of layer cage in market, you should choose as weight and size of your birds, also the climate in your country. For example, 1.5KG and 2.5KG requests for different size of layer cage. Under hot and cool weather the lifespan of same quality of chicken layer cage will be very different. So the price is no the only factors.
1. below 2000 birds. We advice you choose manual layer cage, drinking system is automated, workers will put food in chicken trough and picked eggs, in future if you want to enlarge your farm to 10,000+ birds, our automatic feeding equipment and automatic egg collection will be installed on the using layer cage directly.
2. between 5000 birds to 10,000 birds. Beside layer cage, we advice you choose manure removal system, chicken dropping cleaning on time will reduce disease and improve egg production rate, meanwhile it will save much more time and labor cost.
3. Beyond 15,000 birds. Some automatic equipment should be installed, you will own two or more chicken house, it is easy to manage, such as automatic egg collection, works once or twice a day. QunKun® owns its poultry farms, let us sharing poultry farming experience.Please let us know which country are you in? What is your farm plan? how many chicken do you have ? In African countries, we have branch and warehouse. Our sales department will give you helpful advice on your farm and feeding, quotation and house design.
Let us talk online whatsApp +86 18032423029 or send email to Info@Chinachickencage.com, I am Amanda Zhou.

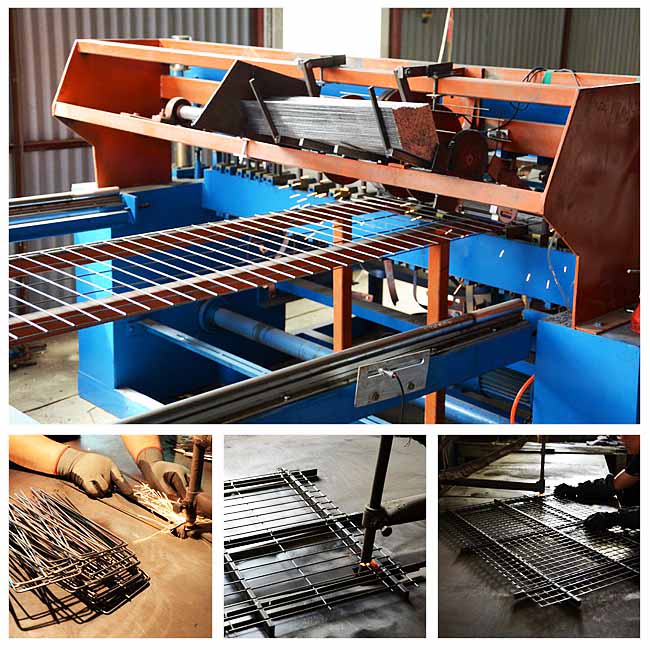

1. Raw material selection
Carbon content decides the metal wire hardness, our metal wire for cage ordered from China big steel factory, high hardness and high elastic deformation, make the cage mesh no deformation, cage lifespan improves 3 years at least than common factory
2. Up to 20 years using
Quality hot deep galvanized cage mesh will ensure your cage that it remains protected from corrosion and rust for 10 years at least

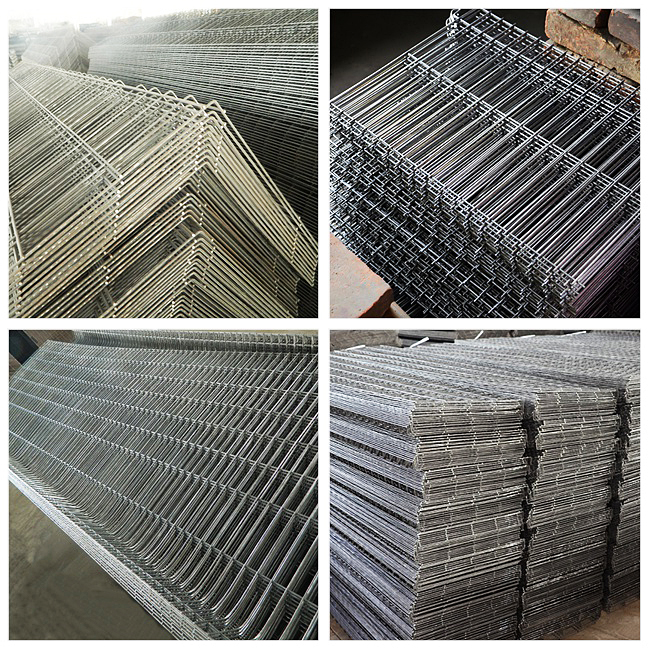

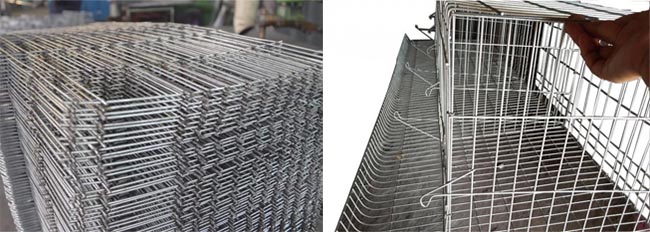

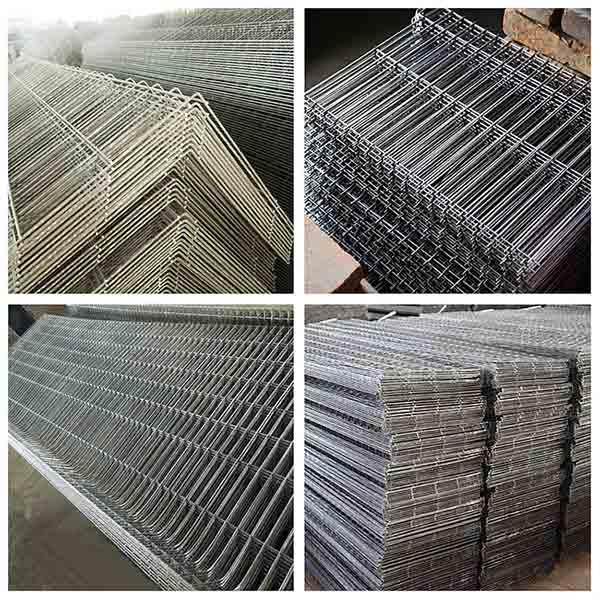

3. Cage mesh design
Big sliding door design is easy to pick chicken, The density of bottom cage mesh can prevent feather and anus pecking and prevent layer chicken fatigue syndrome.
4. Very easy to install.
We can send poultry cage installation video to you. You can check it out on

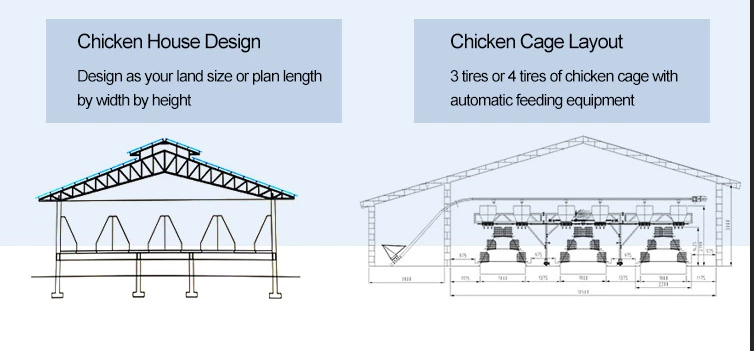

5.Free layout design
We offer a free design service based on the size of poultry house or coop you want.

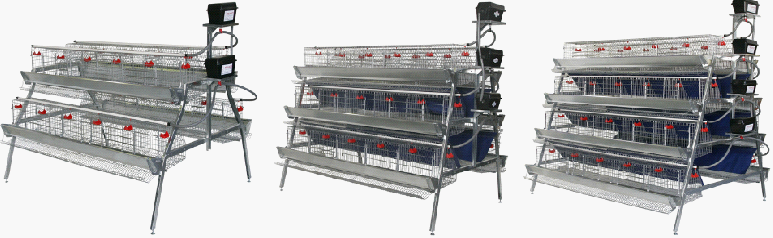

| “A” Type Chicken Cage Specifications | ||||||
| Type | Tier & Nest | Size (L x W x H) | Nos of cells per Tier | Nos of cells per Set | Nos of hens per cell | Nos of hens per Set |
| A Type | 3 Tiers, 4 cells | 1.88 x 2.1 x 1.5m | 8 | 24 | 4 | 96 |
| 3 Tiers, 4 cells | 2.0 x 2.1 x 1.5m | 8 | 24 | 4 | 96 | |
| 3 Tiers, 5 cells | 1.95 x 2.1 x 1.5m | 10 | 30 | 3 or 4 | 90 or 120 | |
| 3 Tiers, 5 cells | 2.15 x 2.1 x 1.5m | 10 | 30 | 4 | 120 | |
| 4 Tiers, 4 cells | 1.88 x 2.4 x 1.95m | 8 | 32 | 4 | 128 | |
| 4 Tiers, 5 cells | 1.95 x 2.4 x 1.95m | 10 | 40 | 3 or 4 | 120 or 160 | |
| 4 Tiers, 5 cells | 2.15 x 2.4 x 1.95m | 10 | 40 | 4 | 160 | |
| Not Recommended, because the cage is very high and not convenient to manage. | ||||||
| 5 Tiers, 5 cells | 1.95 x 2.8 x 2.5m | 10 | 50 | 3 or 4 | 150 or 200 | |
| Material | High quality low carton steel wire (Q195/Q235) |
|
Surface Treatment And Service Life
|
Cold galvanized chicken cage (6-year to 10-year) |
| Hot galvanized chicken cage (20-year to 30-year) | |
| Green PVC coated chicken cage (20-year to 30-year) | |

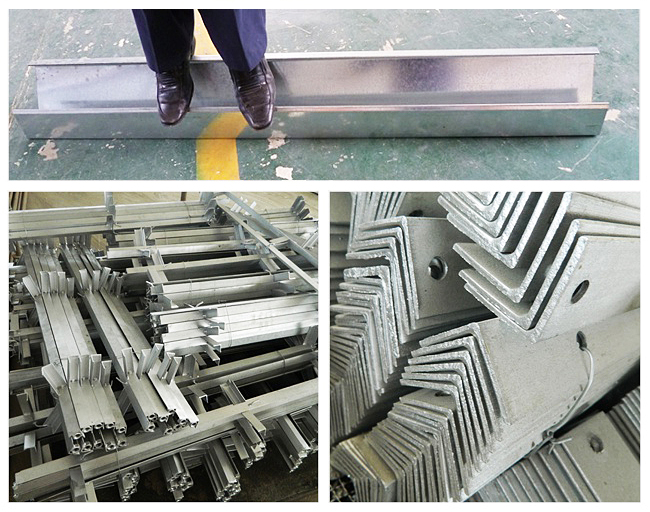

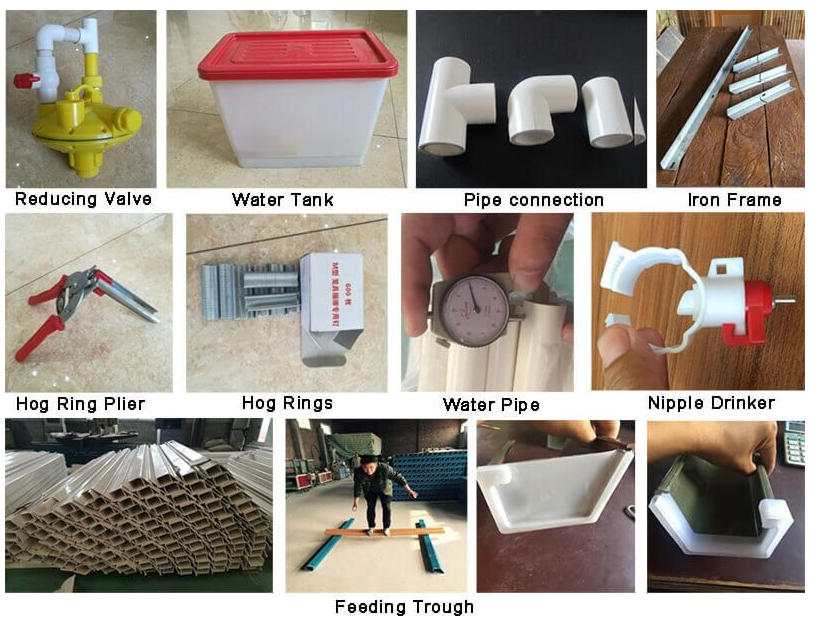

| Accessories |

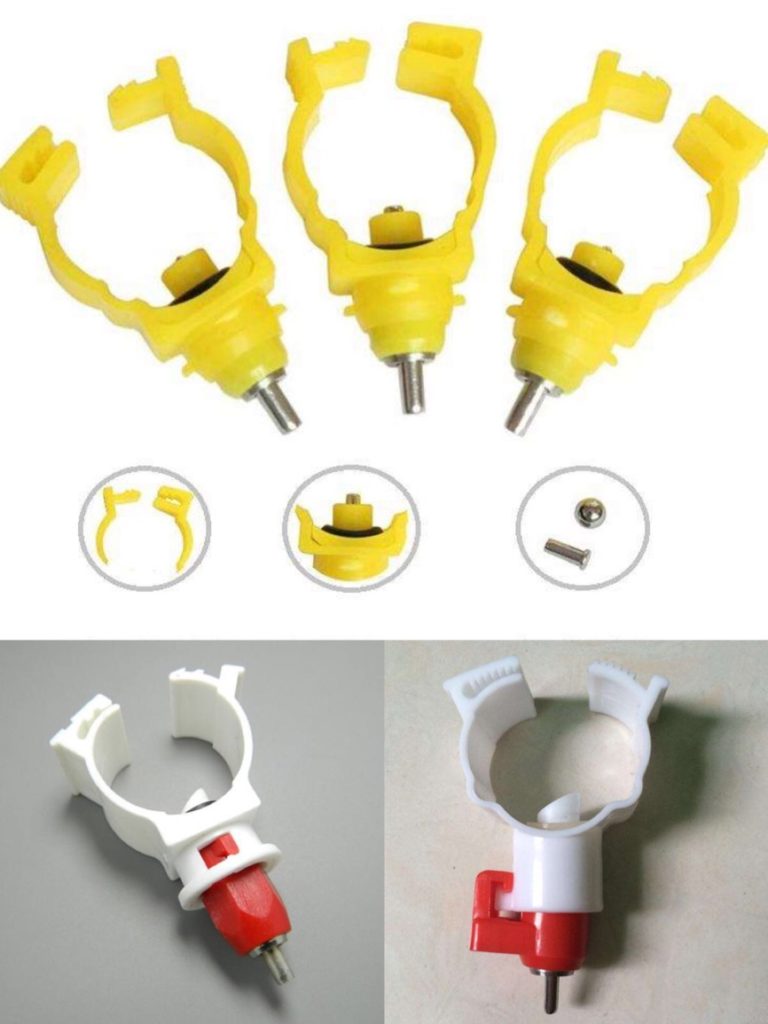

Pvc feeding trough,nipple drinker,water pipe,water tank,reducing valve,cage frame, water tank frame, pliers and another fittings |
3.the silver white feeding trough length is 2m/pc, made from concentrate pure PVC, Loading capacity is more than 60kg/pc
4.Excellent farm design and build experience for your special layout design requirements, IT IS FOR FREE !
5. Easy to install and operate - No need professional technicians service, we will provide the installing videos for your reference.we will teach you step by step.

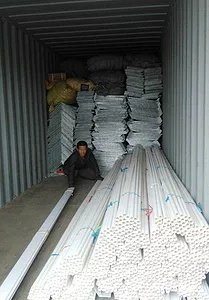

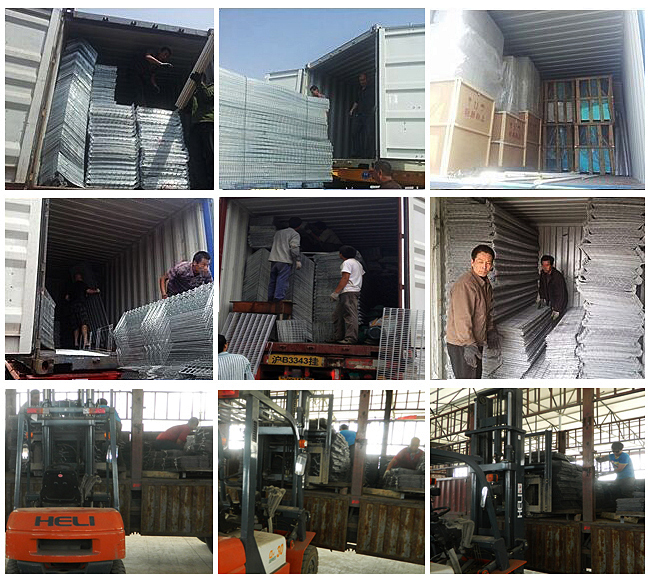

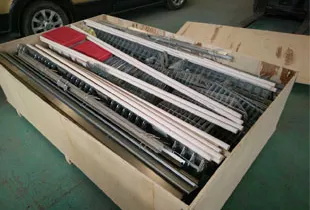

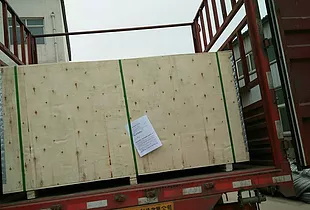

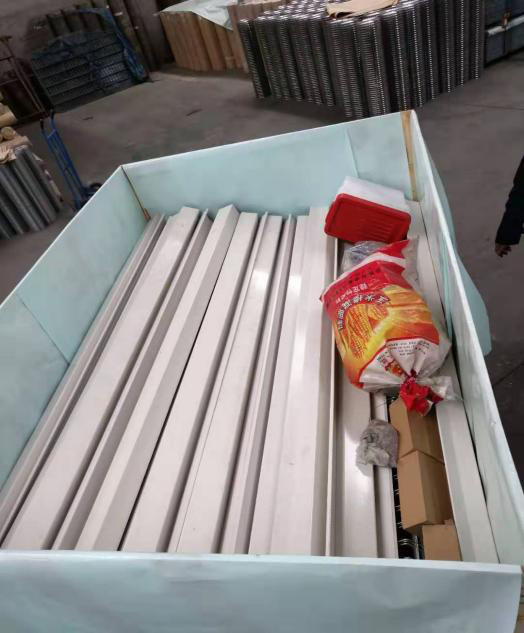

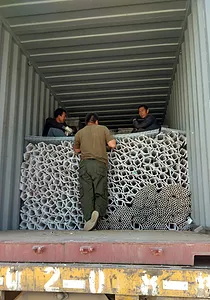

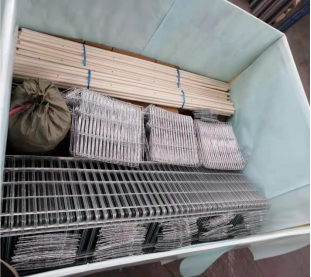

1.Less than container: Wooden Box.

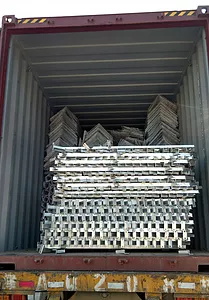

2. Full container: Nude packing
| Type | 20 FT container | 40 FT high container |
| A-96 | 130 SETS | 280 SETS |
| A-120 | 130 SETS | 280 SETS |
| A-128 | 100 SETS | 210 SETS |
| A-160 | 80 SETS | 160 SETS |
1. Raw material selection
Carbon content decides the metal wire hardness, our metal wire for cage ordered from China big steel factory, high hardness and high elastic deformation, make the cage mesh no deformation, cage lifespan improves 3 years at least than common factory
2. Up to 20 years using
Quality hot deep galvanized cage mesh will ensure your cage that it remains protected from corrosion and rust for 10 years at least
3. Cage mesh design
Big sliding door design is easy to pick chicken, The density of bottom cage mesh can prevent feather and anus pecking and prevent layer chicken fatigue syndrome.
4. Very easy to install.
We can send poultry cage installation video to you. You can check it out on
5.Free layout design
We offer a free design service based on the size of poultry house or coop you want.

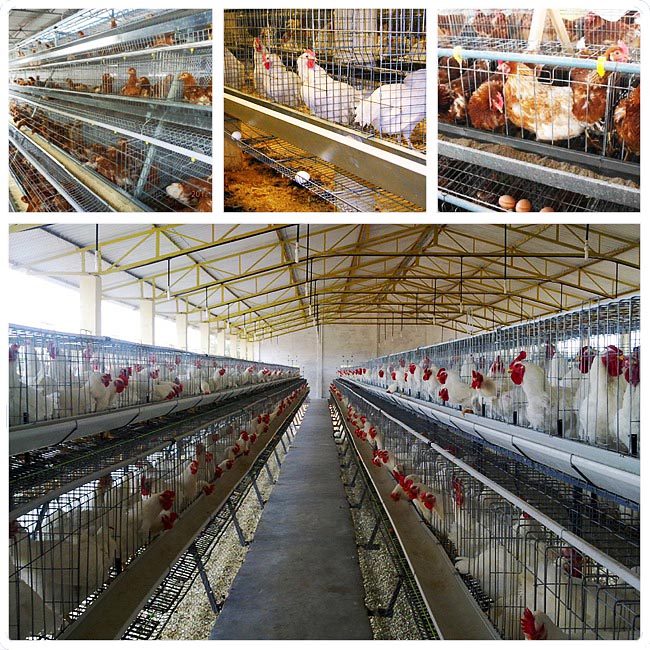

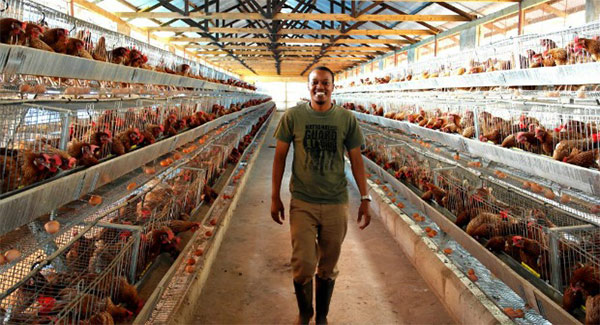

Project 1 details:
Country: South Africa
Number of chickens:Total 12480 chickens
Size of chicken house: 80 m long,8m wide.
Customer feedback: the cages are good, especially the feeding system,another 3 houses are waiting for arranged. i will make an order from Qunkun again and again and i want to be your agent in future.
Project 2 details:
Country: Guatemala
Number of chickens:Total 126,720 chickens
Size of chicken house: 92m long,60m wide.7.62m height
Customer feedback: the design from Qunkun is best. All the cages are in good condition , I will expand and order more cages next time.
Project 3 details:
Country: Philippines
Number of chickens:Total 10,000 chickens
Size of chicken house: 65m long,9m wide.
Customer feedback: Its very convenient to use the cages keep the layers
Project 4 details:
Country: Ecuador
Number of chickens:Total 1400 chickens
Size of chicken house: 50m long,11.5 wide.
Customer feedback: thanks for providing me the good cages, this is custom made. Its a trail order. Our chicken house can hold more than 20000 chickens, i will order again for this one.believing that it can be used for longer time
Project 5 details:
Country: Peru
Number of chickens:Total 12960 chickens
Size of chicken house:
11m(L)*20m(W)*3.2m(H)*4 Houses
Customer feedback: my friend also will buy from you in the near future. The surface treatment is smooth.
| “A” Type Chicken Cage Specifications | ||||||
| Type | Tier & Nest | Size (L x W x H) | Nos of cells per Tier | Nos of cells per Set | Nos of hens per cell | Nos of hens per Set |
| A Type | 3 Tiers, 4 cells | 1.88 x 2.1 x 1.5m | 8 | 24 | 4 | 96 |
| 3 Tiers, 4 cells | 2.0 x 2.1 x 1.5m | 8 | 24 | 4 | 96 | |
| 3 Tiers, 5 cells | 1.95 x 2.1 x 1.5m | 10 | 30 | 3 or 4 | 90 or 120 | |
| 3 Tiers, 5 cells | 2.15 x 2.1 x 1.5m | 10 | 30 | 4 | 120 | |
| 4 Tiers, 4 cells | 1.88 x 2.4 x 1.95m | 8 | 32 | 4 | 128 | |
| 4 Tiers, 5 cells | 1.95 x 2.4 x 1.95m | 10 | 40 | 3 or 4 | 120 or 160 | |
| 4 Tiers, 5 cells | 2.15 x 2.4 x 1.95m | 10 | 40 | 4 | 160 | |
| Not Recommended, because the cage is very high and not convenient to manage. | ||||||
| 5 Tiers, 5 cells | 1.95 x 2.8 x 2.5m | 10 | 50 | 3 or 4 | 150 or 200 | |
| Material | High quality low carton steel wire (Q195/Q235) |
|
Surface Treatment And Service Life
|
Cold galvanized chicken cage (6-year to 10-year) |
| Hot galvanized chicken cage (20-year to 30-year) | |
| Green PVC coated chicken cage (20-year to 30-year) | |
| Accessories |
Pvc feeding trough,nipple drinker,water pipe,water tank,reducing valve,cage frame, water tank frame, pliers and another fittings |
Special Advantages Of Qunkun Chicken Cage System
3.the silver white feeding trough length is 2m/pc, made from concentrate pure PVC, Loading capacity is more than 60kg/pc
4.Excellent farm design and build experience for your special layout design requirements, IT IS FOR FREE !
5. Easy to install and operate - No need professional technicians service, we will provide the installing videos for your reference.we will teach you step by step.
1. Less of full container: below 80 sets, first packed with plastic film then on the pallets
2. Full container: Nude packing
1.Less than full container: Wooden Box.
2. Full container: Nude packing
| Type | 20 FT container | 40 FT high container |
| A-96 | 130 SETS | 280 SETS |
| A-120 | 130 SETS | 280 SETS |
| A-128 | 100 SETS | 210 SETS |
| A-160 | 80 SETS | 160 SETS |
Our chicken cages from Qunkun have included all the fittings and accessories as follows:
