Automatic Manure Cleaning System

The automatic manure cleaning system is used to clean a variety of sheds and to remove manure from farm barns, including those used to house chickens. They do an amazing job in terms of reducing the amount of labor required and help to maintain a good indoor air environment so that the animals have a good living space. This, in turn reduces the incidence of the disease.

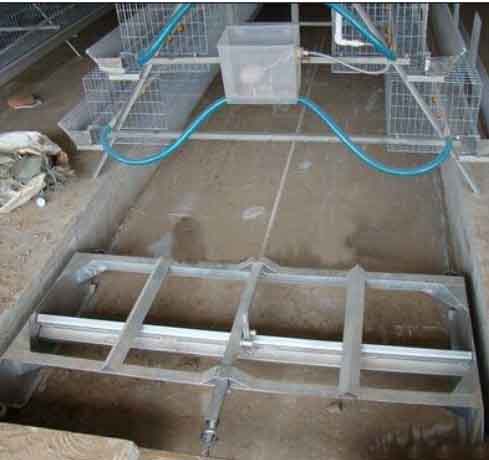

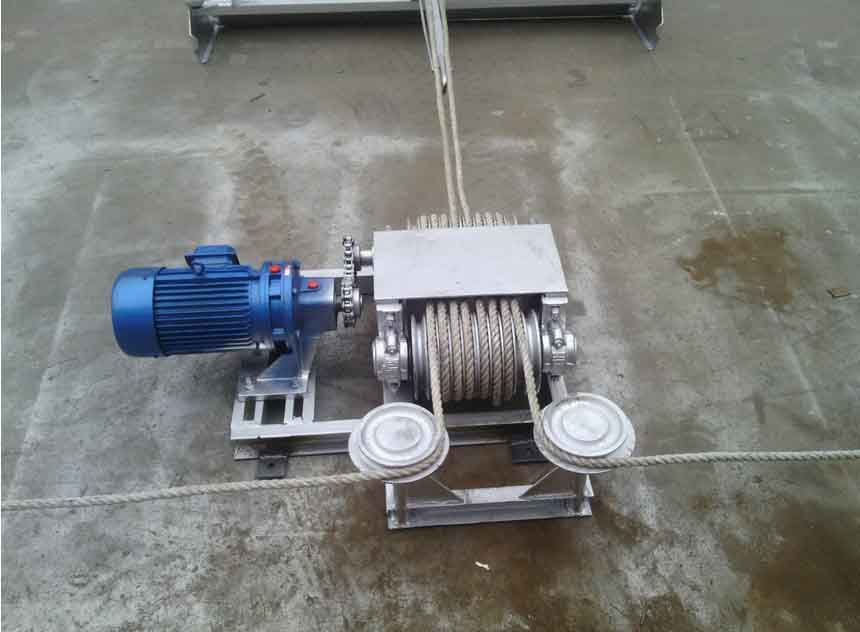

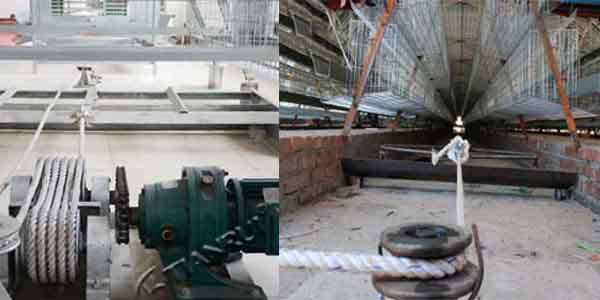

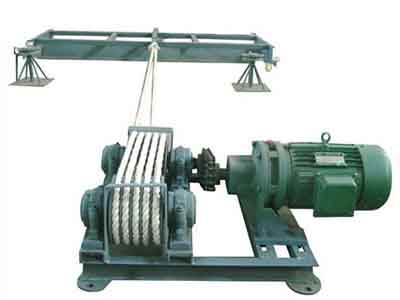

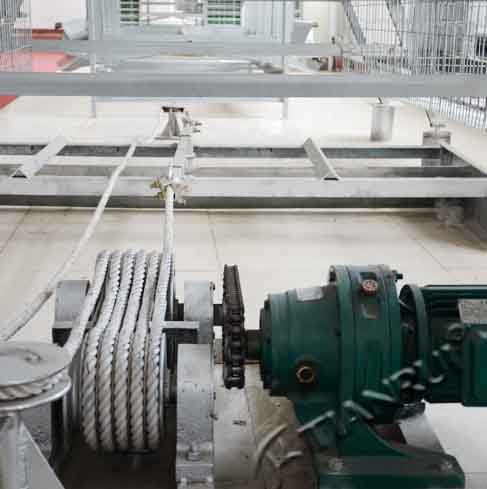

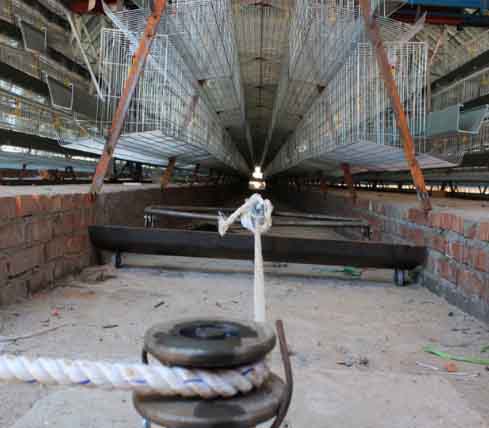

Manure scraper connects with the rope, the rope connects with the electro motor, when you turn on the electro motor, the manure scraper will go from the Beginning of the hollow to the end, so the manure will be removed. All of the manure will be at the same side.

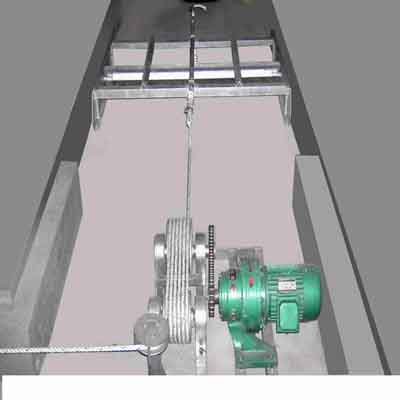

The 3D design of the automatic manure cleaning system

If you want a best quality automatic manure cleaning system, QunKun® automatic manure cleaning system is your first choosing

A. We have a full specification scopes of the machines which can meet our customers every requirements.

B. We have longtime and rich experience on the products manufacturing. If any machine operation questions after sales, we will reply you within 24 hours with solutions. And customer can be rest assured.

C. We value the good relationship with our customers. And we enjoy the good reputation in the business.

Our Service
1) OEM Service are provided         2) High quality control

3) Prompt delivery time                  4) Excellent service

5) New product                              6) Customer's design and logos are welcome

7) Competitive price                      8) In a variety of designs

9) Small order acceptable



Applications of automatic manure cleaning system:

1) Cleaning chicken dropping for large-scale and medium-sized farm

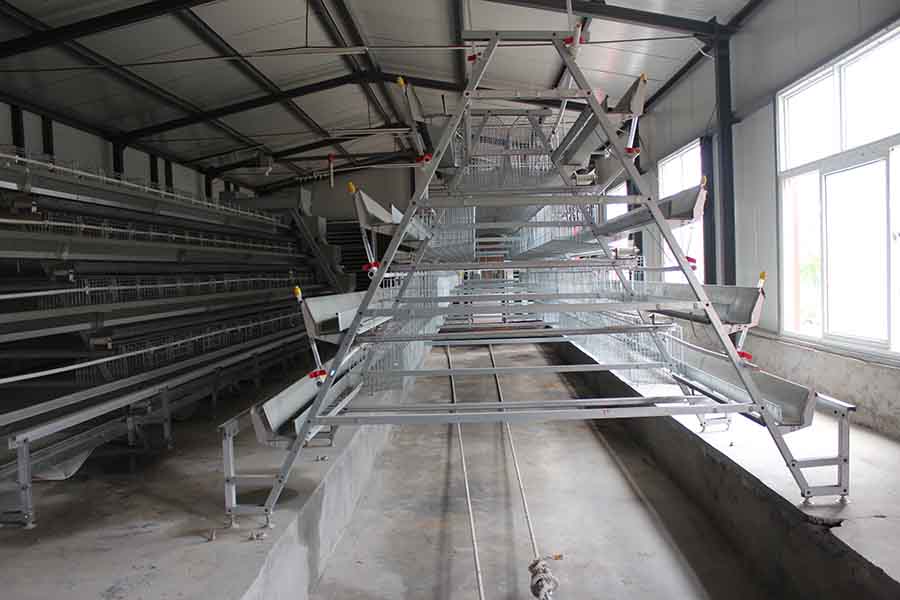

2) removing manure from manure pits in close or open chicken farm.
Rated power 1.5 or 3KW
Rated voltage 220V or 380V
Walking speed 6-10m/min
Maximum traction work force 28000-32000N
Wiper clean rate ≥95%
The size of motor 90cm*70cm（L*W）
The scraper size 208cm*93cm*23cm(L*W*H)
Structure weight 350kg
The product type One machine with one scraper;One machine with two scrapers;One machine with three scrapers
Scraper dimension Customize according to your poultry farm manure pit width




The advantage of QunKun automatic manure cleaning system:

①Our automatic manure removal machines are essentially robotic, and they do not need to be manned. The time can be set according to the needs of the farmer, ensuring automatic timing for manure cleaning keeps any chicken house clean 24/7, 365 days of the year.
②Automatically cleans manure as often as you require. The operation is simple and quick, and of course automatic. The timer may be changed manually when required, at the discretion of the farmer or his workers.
③The design of the scraping manure plate features eight wheels. The scraper itself retracts automatically and the plate can be adjusted manually. There is very little friction during operation.
④The trough can be cleaned thoroughly, with ease.
⑤We supply 220 V single-phase power and 380 V three-phase power, to meet the needs of all farmers.
⑥We design standardized chicken farms for our customers free of charge according to different climate and  environment, breeding conditions, breeding varieties and management modes.
If you are interested, please feel  free to contact us directly. We can tailor-made solutions for you.





LCL:Wooden box packing
PCL:Nude packing
Custom packaging is acceptable

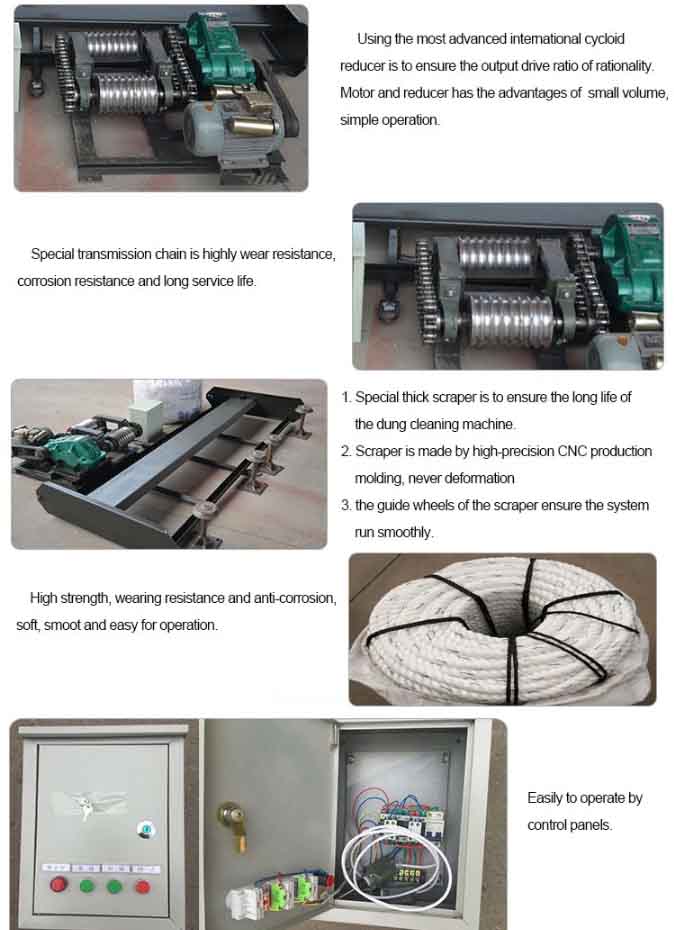

The automatic manure cleaning system mainly including the following accessories：

1.Using the the most advanced international cycloid reducer: To ensure the output  drive ratio of rationality.Motor and reducer has the advantages of small volume,simple operation.
2.Special transmission chain:Highly wear resistance,corrosion resistance and long service life.
3.Thick scraper of the automatic manure cleaning system:To ensure the long life of the manure cleaning machine.Scraper is made by high-precision CNC production molding,never deformation.The guide wheels of the scraper ensure the system run smoothly.
4.Traction rope of the automatic manure cleaning system:High strength,wearing resistance and anti-corrosion,soft,smooth and easy for operation
5.Control panels:Easily to operate






Why QunKun®



If you want a best quality egg incubator, QunKun® egg incubator is your first choosing

A. We have a full specification scopes of the machines which can meet our customers every requirements.

B. We have longtime and rich experience on the products manufacturing. If any machine operation questions after sales, we will reply you within 24 hours with solutions. And customer can be rest assured.

C. We value the good relationship with our customers. And we enjoy the good reputation in the business.

Our Service
1) OEM Service are provided         2) High quality control

3) Prompt delivery time                  4) Excellent service

5) New product                              6) Customer's design and logos are welcome

7) Competitive price                      8) In a variety of designs

9) Small order acceptable

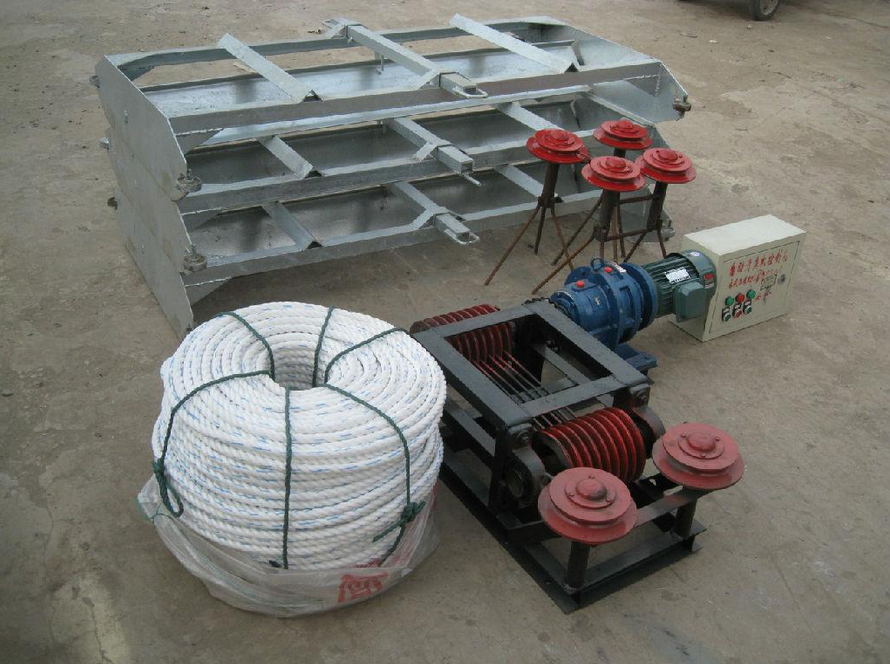

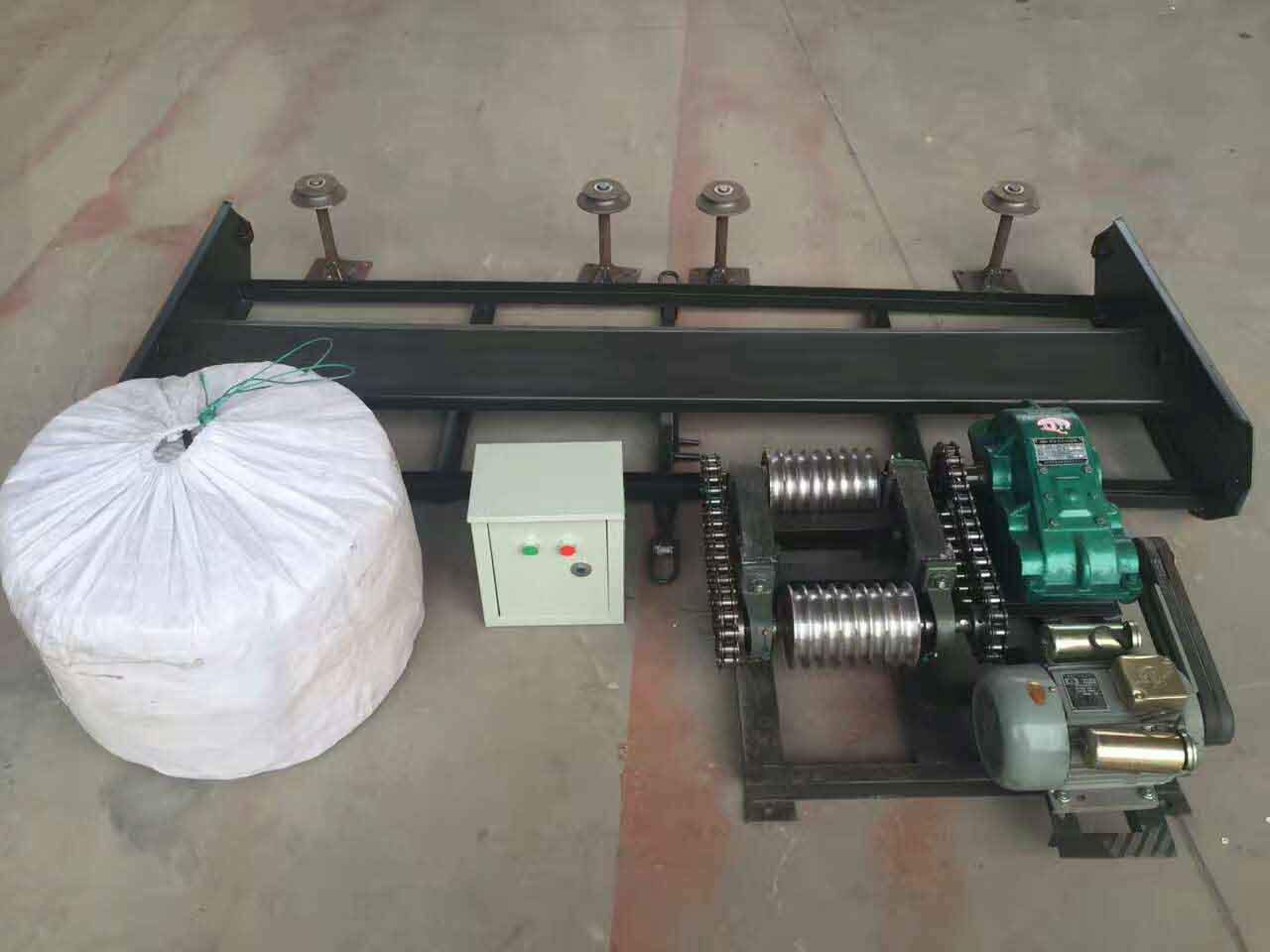

The complete equipment of automatic manure cleaning system

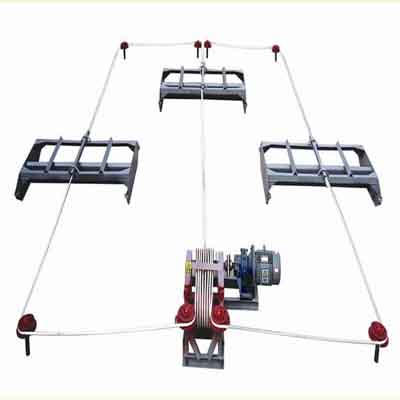

The automatic manure cleaning system for one machine with three scrapers

Projects

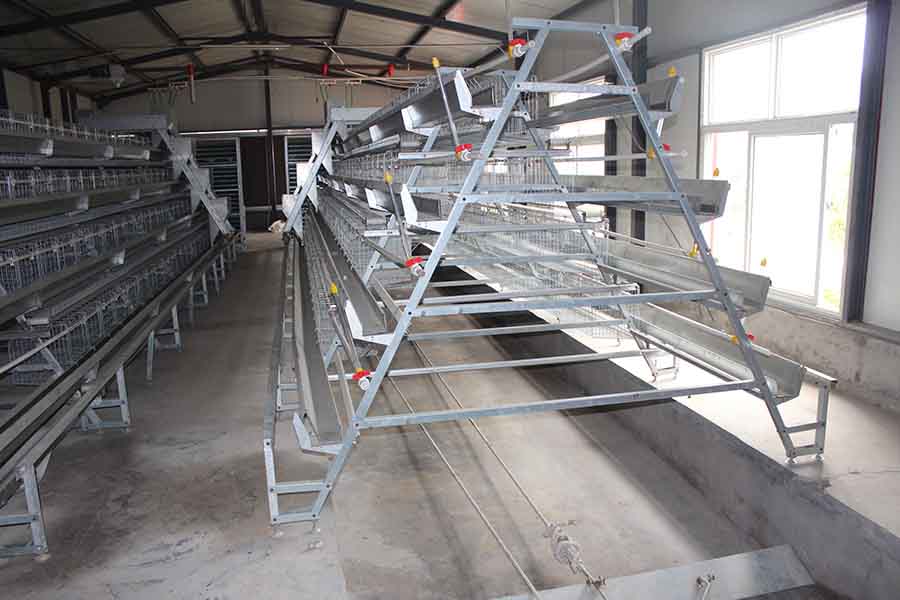

Applications of automatic manure cleaning system:
1) Cleaning chicken dropping for large-scale and medium-sized farm
2) removing manure from manure pits in close or open chicken farm.

Specifications

Rated power 1.5 or 3KW
Rated voltage 220V or 380V
Walking speed 6-10m/min
Maximum traction work force 28000-32000N
Wiper clean rate ≥95%
The size of motor 90cm*70cm（L*W）
The scraper size 208cm*93cm*23cm(L*W*H)
Structure weight 350kg
The product type One machine with one scraper;One machine with two scrapers;One machine with three scrapers
Scraper dimension Customize according to your poultry farm manure pit width


The 3D design of feed silo

Advantage

The advantage of QunKun automatic manure cleaning system:
①Our automatic manure removal machines are essentially robotic, and they do not need to be manned. The time can be set according to the needs of the farmer, ensuring automatic timing for manure cleaning keeps any chicken house clean 24/7, 365 days of the year.
②Automatically cleans manure as often as you require. The operation is simple and quick, and of course automatic. The timer may be changed manually when required, at the discretion of the farmer or his workers.
③The design of the scraping manure plate features eight wheels. The scraper itself retracts automatically and the plate can be adjusted manually. There is very little friction during operation.
④The trough can be cleaned thoroughly, with ease.
⑤We supply 220 V single-phase power and 380 V three-phase power, to meet the needs of all farmers.
⑥We design standardized chicken farms for our customers free of charge according to different climate and  environment, breeding conditions, breeding varieties and management modes.
If you are interested, please feel  free to contact us directly. We can tailor-made solutions for you.



Package

LCL:Wooden box packing
PCL:Nude packing
Custom packaging is acceptable

Fittings

The automatic manure cleaning system mainly including the following accessories：
1.Using the the most advanced international cycloid reducer: To ensure the output  drive ratio of rationality.Motor and reducer has the advantages of small volume,simple operation.
2.Special transmission chain:Highly wear resistance,corrosion resistance and long service life.
3.Thick scraper of the automatic manure cleaning system:To ensure the long life of the manure cleaning machine.Scraper is made by high-precision CNC production molding,never deformation.The guide wheels of the scraper ensure the system run smoothly.
4.Traction rope of the automatic manure cleaning system:High strength,wearing resistance and anti-corrosion,soft,smooth and easy for operation
5.Control panels:Easily to operate
