Automatic broiler Drinking and feeding line

Qun Kun® drinking and feeding line - manufacturer since 1999 and Chicken Farming since 2008.
Whats the Automatic broiler Drinking and feeding line ?

This feeding system is based on ground design and includes two systems for feeding and drinking, or a single system design.

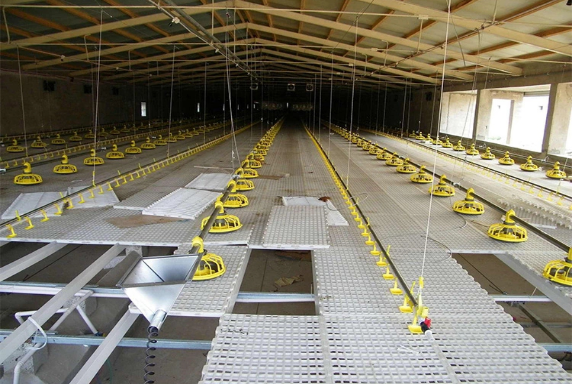

Feeding system

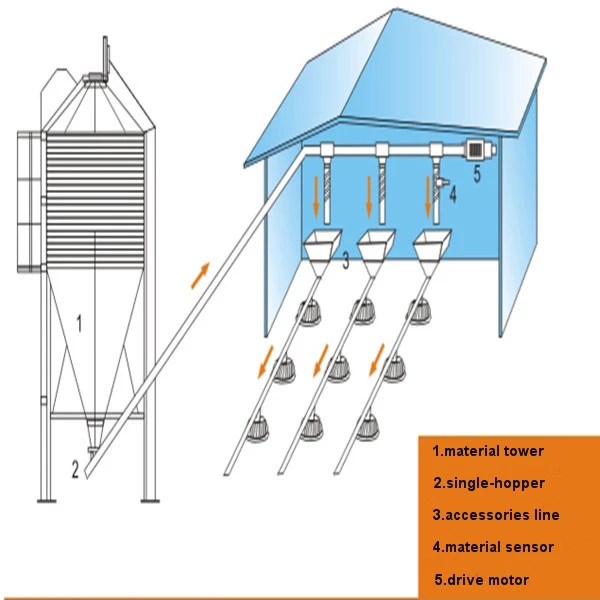

The broiler farming automatic feeding system is composed of silo.driving, feed tube,feed line etc. The closed design and automatic feeding system improves management efficiency of the management and reduce the cross infection. realizes high standard automation of the entire farm.

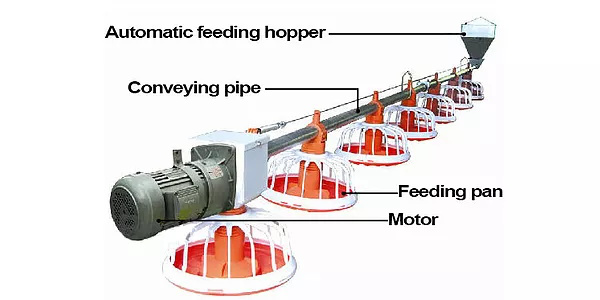

Chicken disk type automatic feeding system consists of a driving device.a hopper ,a conveying pipe,an auger,trays,a suspension lifting device,an anti-perching device and a material level sensor.
The main function of the system is to convey feed from the hopper into each tray to ensure the eating of the meat chickens and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.

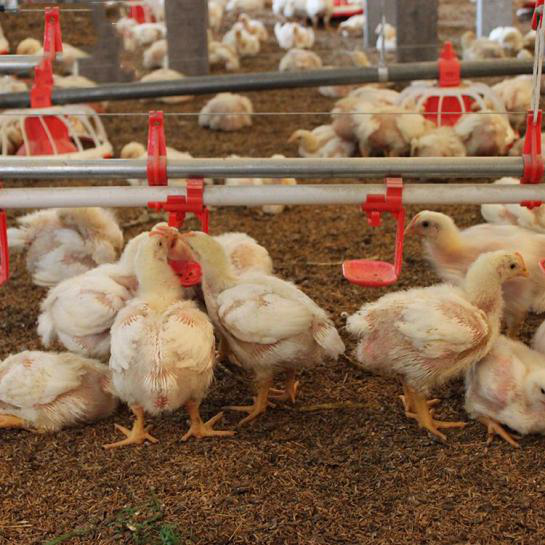

Drinking system





This main function is to deliver certain pressure water to drinking pipe,the water will flow out when automatically broilers touch the nipple,so as to meet the function of drinking water automatically.

Let us talk online whatsApp +86 18032423029 or send email to Info@Chinachickencage.com, I am Amanda Zhou.

A. We have a full specification scopes of the machines which can meet our customers every requirements.

B. We have longtime and rich experience on the products manufacturing. If any machine operation questions after sales, we will reply you within 24 hours with solutions. And customer can be rest assured.

C. We value the good relationship with our customers. And we enjoy the good reputation in the business.

Our Service
1) OEM Service are provided        2) High quality control

3) Prompt delivery time            4) Excellent service

5) New product                        6) Customer's design and logos are welcome

7) Competitive price                8) In a variety of designs

9) Small order acceptable





Suitable for small and medium-sized free-range poultry farming

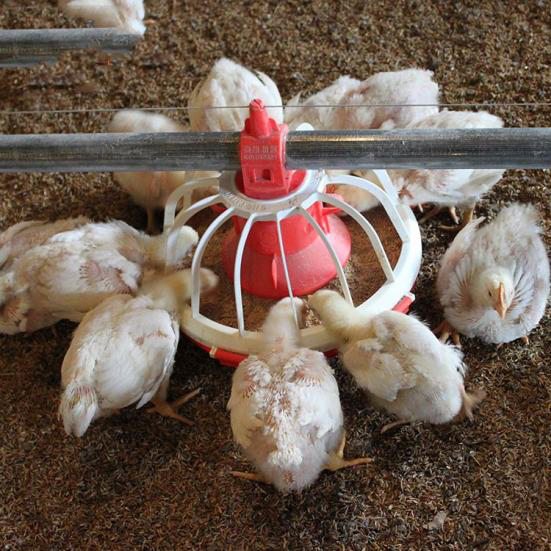

Details of Broiler feeder pan:

No. of grilles per pan 14
No. of birds per pan could feed 40-55
Distance per grille 70mm
Density of broiler 13-18birds/M2
Max feed per pan for one bird per day 180g/bird
Dimension 330mm×330mm

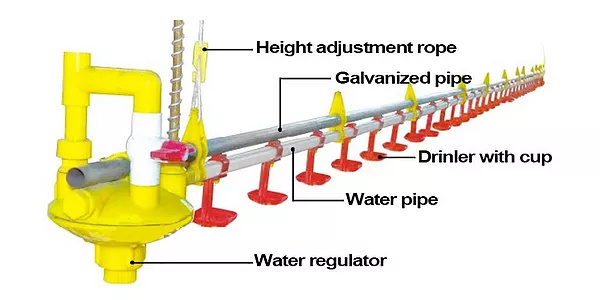

Nipple drinker system

Specification 12nipple/3m & 15nipple/3m
Max Work Length 150m
Nipple Drinking interval 20cm/25cm
Drinking Line interval 2.5-3.5m
Hanging Point interval 3m
No. of chicken supplied 10-12
Standard Water Quality Clean
Shape of water pipe Square or round
Diameter of water pipe 22mm or 25mm
Material of water pipe PVC
Feed line motor:
High quality special driving reduction motor:
Taiwan motor with overload protection of ip55
Power: 0.75/1.1/1.5kw voltage: 380/220v, frequency:50/60hz, 3 phases/1phase
Transmission speed: 450kg/h
Hopper:
Bin volume: 70/90/120kgs capacity , material: hot-dip galvanized sheet
material thickness: 1mm
Feed tube:
Φ45mm diameter, hot-dip galvanized steel pipe with more than 275g/m2 zinc coated
Feeding ability : 450kg/h
Maximum conveyor length :140m
All is New PP material

Special advantage of drinking and feeding line form Qunkun

1--save time and labor, one shed just need one person
2--increase survival rate
3--easier to operate.
4--easier to install and clean.
5--longer service life. More than 15-20 years
6--competitive price.
7--complete controlled poultry equipment.

Automatic Bell Drinker



LCL:Wooden box packing
PCL:Nude packing
Custom packaging is acceptable

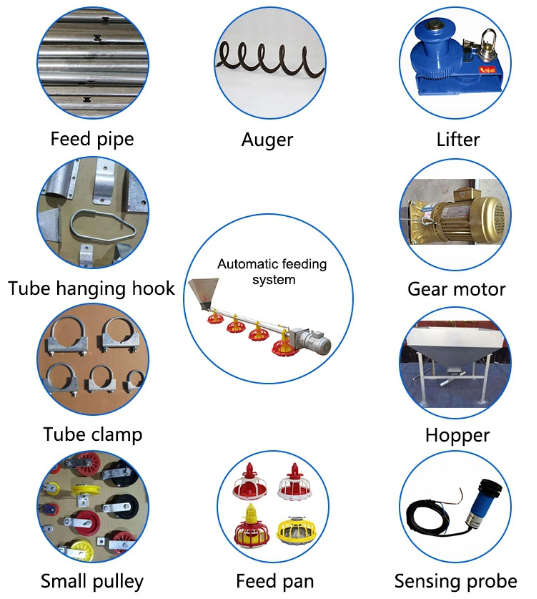

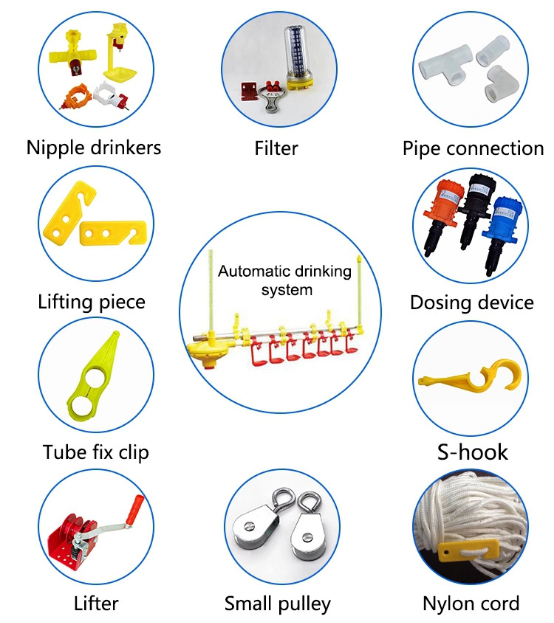

Qunkun metal will provide all the fittings and accessories as follows :






Why QunKun®

A. We have a full specification scopes of the machines which can meet our customers every requirements.

B. We have longtime and rich experience on the products manufacturing. If any machine operation questions after sales, we will reply you within 24 hours with solutions. And customer can be rest assured.

C. We value the good relationship with our customers. And we enjoy the good reputation in the business.

Our Service
1) OEM Service are provided        2) High quality control

3) Prompt delivery time            4) Excellent service

5) New product                        6) Customer's design and logos are welcome

7) Competitive price                8) In a variety of designs

9) Small order acceptable

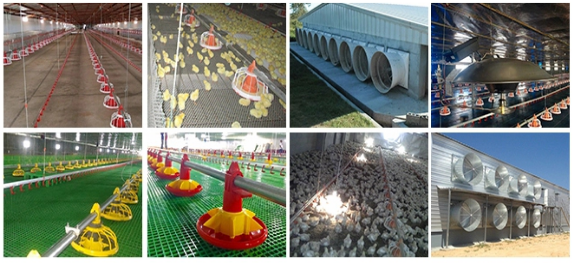

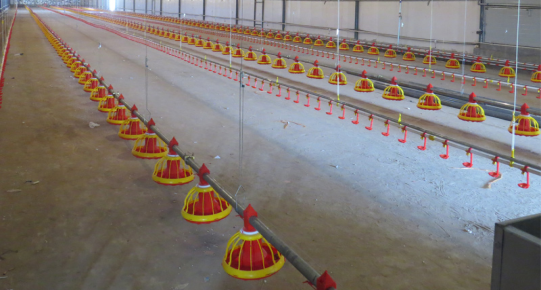

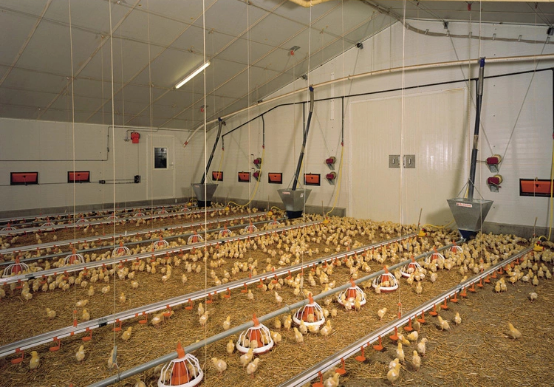

Projects

Suitable for small and medium-sized free-range poultry farming


Specifications

Details of Broiler feeder pan:

No. of grilles per pan 14
No. of birds per pan could feed 40-55
Distance per grille 70mm
Density of broiler 13-18birds/M2
Max feed per pan for one bird per day 180g/bird
Dimension 330mm×330mm

Nipple drinker system

Specification 12nipple/3m & 15nipple/3m
Max Work Length 150m
Nipple Drinking interval 20cm/25cm
Drinking Line interval 2.5-3.5m
Hanging Point interval 3m
No. of chicken supplied 10-12
Standard Water Quality Clean
Shape of water pipe Square or round
Diameter of water pipe 22mm or 25mm
Material of water pipe PVC
Feed line motor:
High quality special driving reduction motor:
Taiwan motor with overload protection of ip55
Power: 0.75/1.1/1.5kw voltage: 380/220v, frequency:50/60hz, 3 phases/1phase
Transmission speed: 450kg/h
Hopper:
Bin volume: 70/90/120kgs capacity , material: hot-dip galvanized sheet
material thickness: 1mm
Feed tube:
Φ45mm diameter, hot-dip galvanized steel pipe with more than 275g/m2 zinc coated
Feeding ability : 450kg/h
Maximum conveyor length :140m
All is New PP material

Advantage

Special advantage of drinking and feeding line form Qunkun

1--save time and labor, one shed just need one person
2--increase survival rate
3--easier to operate.
4--easier to install and clean.
5--longer service life. More than 15-20 years
6--competitive price.
7--complete controlled poultry equipment.

Automatic Bell Drinker

Package



LCL:Wooden box packing
PCL:Nude packing
Custom packaging is acceptable

Fittings

Qunkun metal will provide all the fittings and accessories as follows :
